The BBPOS WisePOS E reader is a countertop reader for Stripe Terminal apps. If your shop uses Stripe, the following article can be used to set up the BBPOS WisePOS E card reader. Additional information about the BBPOS WisePOS E card reader can be found here.

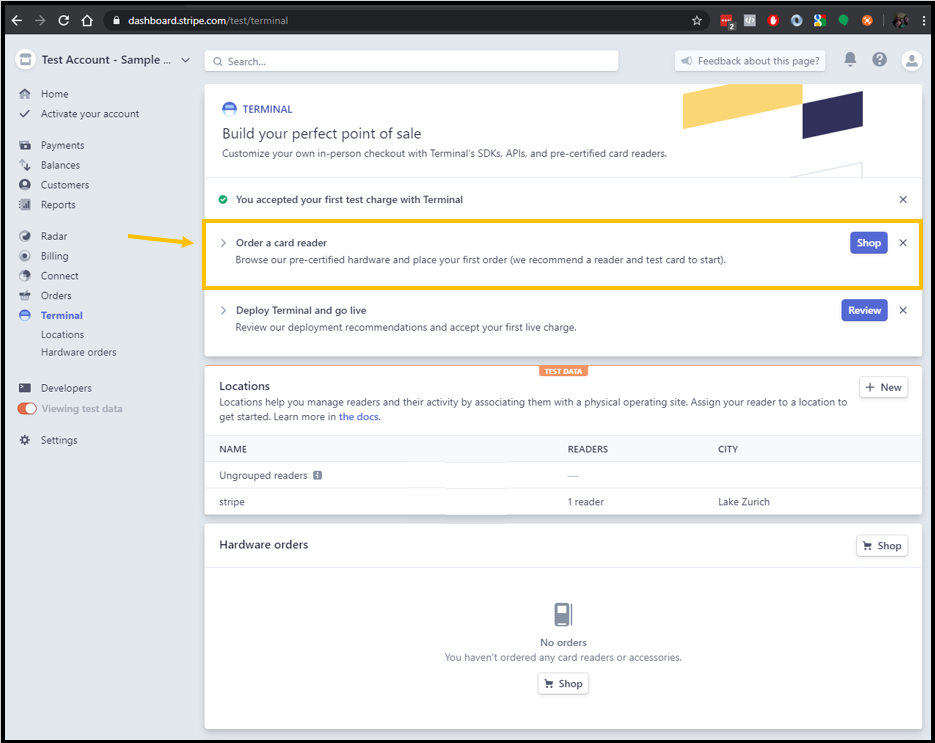

STEP 1: Order BBPOS WisePOS E terminal(s) from Stripe. Simply log in to your Stripe account and select Terminal from the main navigation. Under Order a card reader, click the blue Shop button to get started.

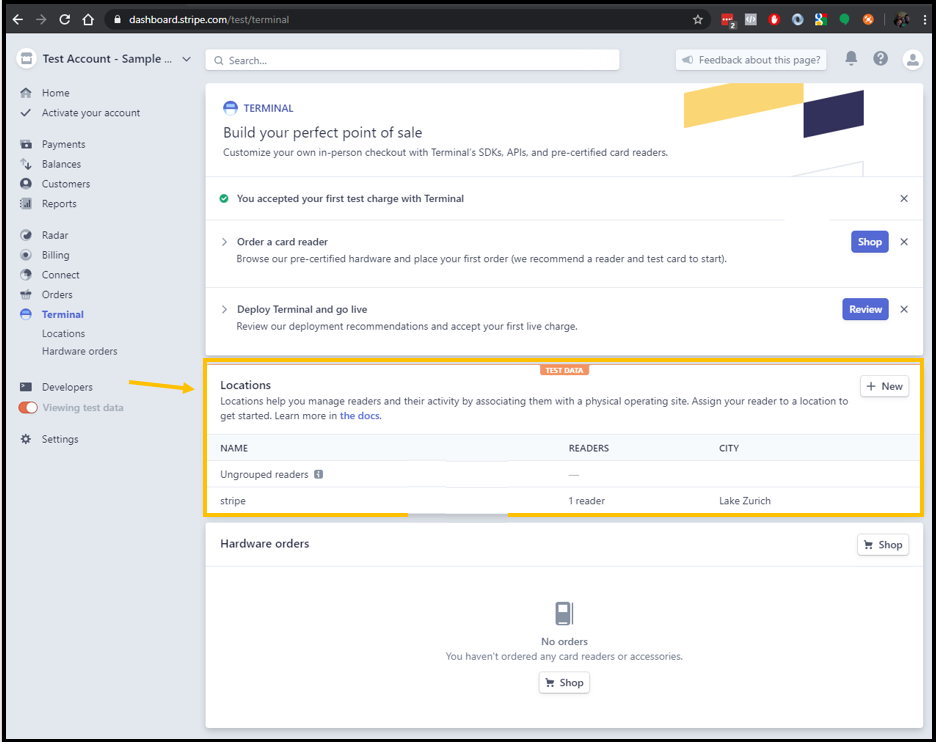

STEP 2: When your reader(s) arrive, log in to Stripe and navigate to Payments > Readers > Locations.
STEP 3: Set up your location(s) within Stripe. Once your location(s) are established start adding your reader(s) to your location(s) as appropriate.

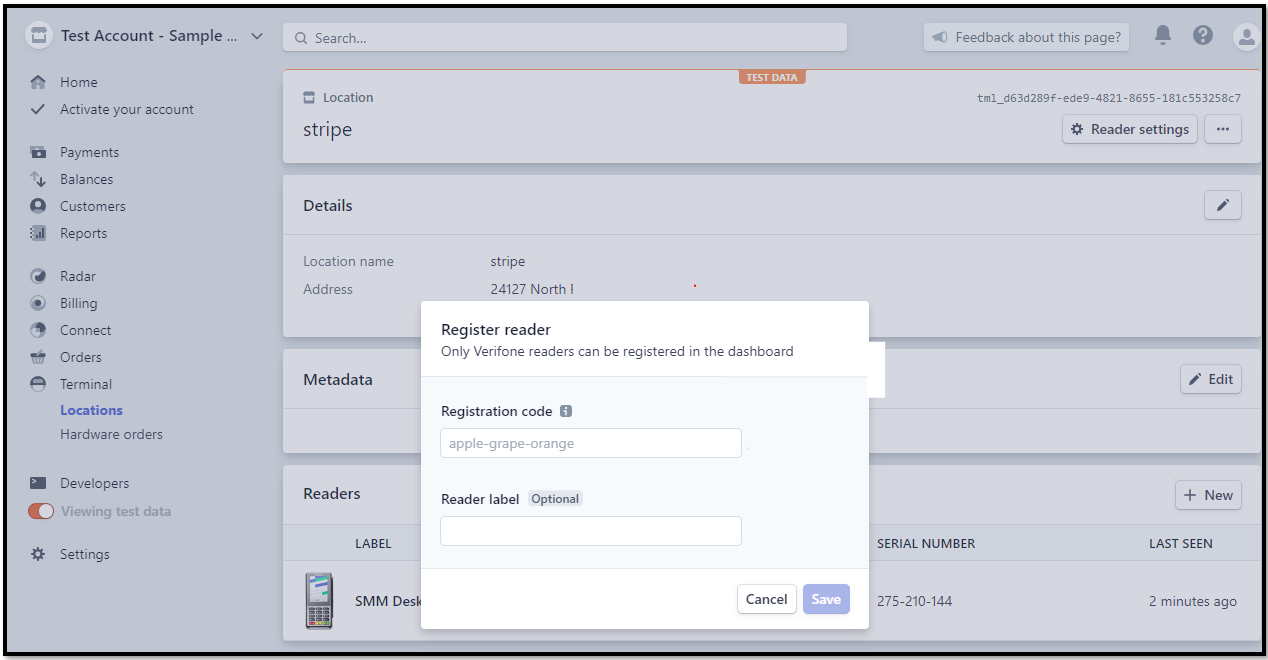

STEP 4: After each device is powered up and online, swipe right from the left side of the screen. Select Settings and enter key sequence 0-7-1-3-9. Select Pairing Registration Code to display a unique registration code. Enter this code on the prompt within Stripe during device pairing.

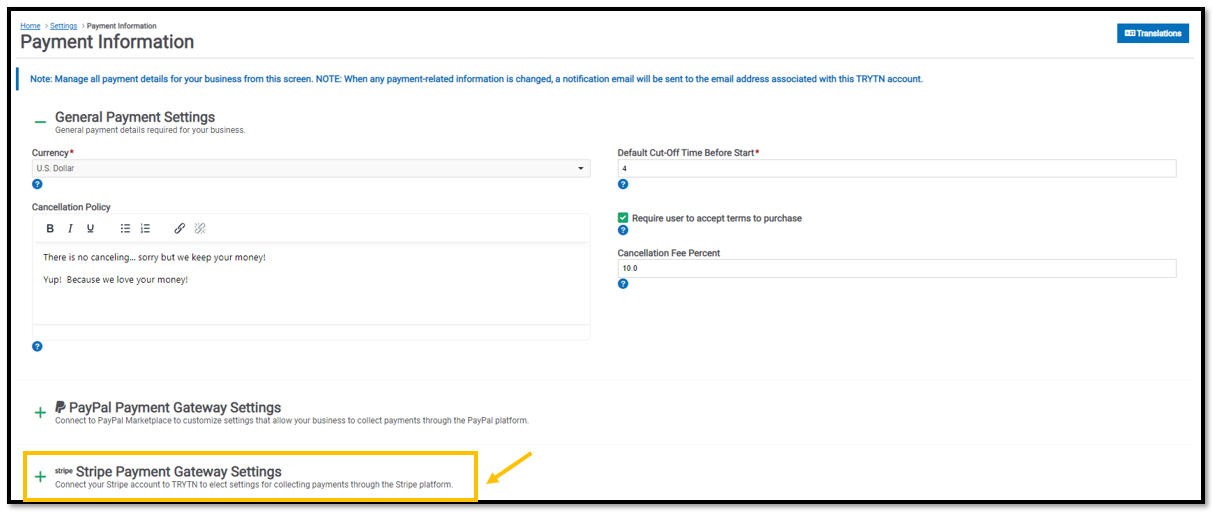

STEP 5: Once all reader(s) are assigned to their location(s), go to TRYTN and navigate to Settings > Payment Information. Click to expand the Stripe Payment Gateway Settings.

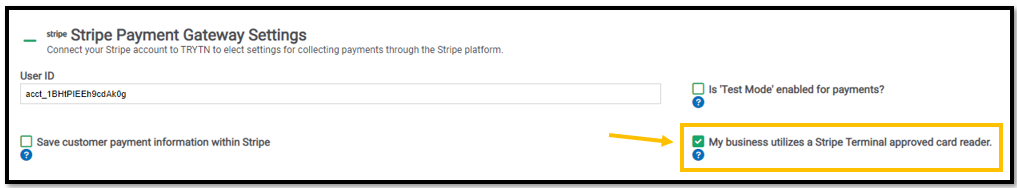

STEP 6: Select My Business Utilizes a Stripe Terminal approved card reader and select Save Changes.
If you run into any issues setting up your reader, here are a few articles that may help.
- My point-of-sale application cannot connect to the reader : Stripe: Help & Support
- The Stripe Terminal SDK is encountering DNS errors when connecting to an Internet Reader : Stripe: Help & Support
How to connect your BBPOS WisePOS E to Wifi
To connect your BBPOS reader (like the WisePOS E) to Wi-Fi, you need a password-protected 2.4 GHz or 5 GHz network using WPA, WPA2, or WPA3-Personal encryption. Hidden, enterprise (WPA-Enterprise), and Wi-Fi 6 (802.11ax) networks are not supported. [1, 2, 3]
Steps to Connect
- Power on the terminal by holding the power button on the right side.
- Swipe right from the left edge of the screen to open the Settings menu.
- Tap Settings and enter the Admin PIN: 07139.
- Select Wi-Fi Settings, choose your local network, and enter the password using the digital keyboard.
- Tap Connect. [1, 2, 3, 4]
Important Network Requirements
- Same Network: Your BBPOS reader must be connected to the same local network as the phone, tablet, or computer running your Point of Sale (POS) software.
- IPv4 Only: The reader requires an IPv4 address and cannot operate on IPv6‑only networks.
-
Connection Type: If you are using Wi‑Fi, disconnect any Ethernet cables from the optional dock. Having both connected at once can cause unstable or unreliable performance.
For visual guidance on navigating the terminal and connecting your BBPOS device to Wi‑Fi, Stripe provides the following resources:
- Set up BBPOS WisePOS E | Stripe Documentation This document teaches you how to physically set up, power, connect, and configure the WisePOS E reader.
- Terminal Network Requirements This document explains what your network must support so the WisePOS E can connect to Stripe and operate without connectivity issues.
